35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300

Name: 35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300
Brand: ShangJie PM
Price: 1 USD

Buy cheap 35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300 product

Bed Material : HT300 Cast Iron

Max Table Load : 250Kg

Axis Travel : X700/Y400/Z500mm

Rapid Speed : 25 m/min

Axis Linkage : Three-Axis Linkage

Brand Name : ShangJie PM

Guide Rail : 35mm P-Level Linear Guides

Place of Origin : Hubei, China

Model Number : CNC740

MOQ : 1

Packaging Details : The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time : 45-60 days

Payment Terms : T/T,L/C,,Western Union

Supply Ability : 45-60 days

X-Axis Travel : 800 mm

Spindle Speed : 8000 RPM

Table Size : 1000x500 mm

Tool Capacity : 24

Weight : 3500 kg

Y-Axis Travel : 500 mm

Max Load Capacity : 500 kg

Number Of Axes : 3

Z-Axis Travel : 500 mm

Power Requirement : 380V, 50Hz, 3 Phase

Accuracy : 0.01 mm

Rapid Traverse Rate : 15 m/min

Control System : CNC

Type : Vertical

Machine Type : CNC740 Drilling Milling Machine

Ball Screws : 40mm C3 Ground Ball Screws

Workbench Size : 1300x350mm

Contact Now

CNC740 CNC Drilling and Milling Machine with HT300 Material 35mm P-level Precision Linear Guides and Ø40 C-level Ground Ball Screws

The CNC series of numerically controlled drilling and milling machines feature an integral bed structure made of HT300 material, offering exceptional rigidity and stability. Equipped with 35mm P-level precision linear guides and Ø40 C3-grade ground ball screws, with 6 slides on the X-axis, these machines deliver precision performance. The CNC control system enables three-axis linkage for complex part machining.

Technical Specifications

Specification	Value
Machine Model	CNC740
Workbench size	1300x350mm
Workbench T-slot (number - size * pitch)	3-14x90mm
Max. load capacity of the workbench	250 Kg
Distance from spindle face to worktable surface	100-600mm
X-axis travel distance	700mm
Y-axis travel distance	400mm
Z-axis travel distance	500mm
X,Y,Z fast movement speed	25 m/min
X axis Max. torque of motor	25.2N.m
Y axis Max. torque of motor	25.2N.m
Z axis Max. torque of motor	34.5N.m
Spindle taper hole	BT40
Spindle motor power	5.5/7.5 KW
Max. spindle speed	8000rpm
Tool magazine capacity (Optional)	Umbrella-Type 12Tools
Air source pressure	0.5-0.8 MPa
Max. weight of cutting tools	8KG
Machine size (L x W x H)	175x160x220 cm
Standard weight	2.0 T

Machine Tool Configuration

35mm P Level Precision Linear Guides CNC740 CNC Drilling Milling Machine HT300

High-quality spindle, imported bearings

PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide

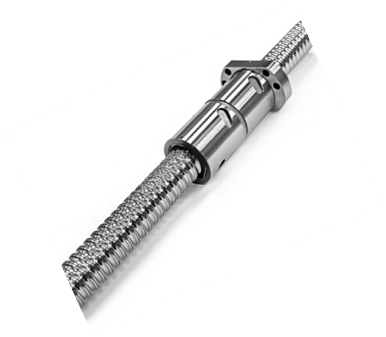

PMI, HIWIN C3 grade precision ground ball screw

Precision high-rigidity coupling
